How Do You Adjust the Height Adjustable Benches

How Do You Adjust the Height Adjustable Benches



INSTALLATION
Some benches are shipped with the legs removed. Install the legs as follows:
  1. Remove the black knobs and washers from each end of the bench.
  2. Install the legs with the labels facing outward and the rubber feet pointing downward.
  3. Place the washers and then the knobs onto the bolts and tighten the knobs to secure the leg in place.

TILT AND HEIGHT ADJUSTMENT
 To tilt and adjust the height of the bench, adjust each leg as follows:
  1. Loosen the black knobs.
  2. Slide the leg sideways until the bolts are in the vertical slots.
  3. Move the leg up or down.

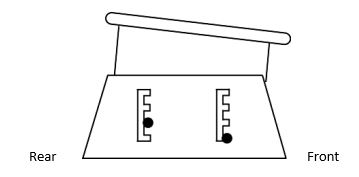

  4. To tilt the leg, move the front edge of the leg up or down relative to the rear as shown:

  1. Slide the leg sideways to seat the bolts fully in the ends of the horizontal slots.
  2. Tighten the knobs.

WORKING LOAD: 180 lbs
