How to Install the Big Bean Chair

How to Assemble the Big Bean Chair

How to Assemble the Big Bean Chair

MATERIAL LIST:
  1. 2 each Side Panels
  2. 1 each Fabric Sling
  3. 3 each Wooden Dowels
  4. 1 each Allen Key
  5. 6 each Screws
  6. 1 each Instruction Manual
  7. 1 each Maintenance Checklist
ASSEMBLY:

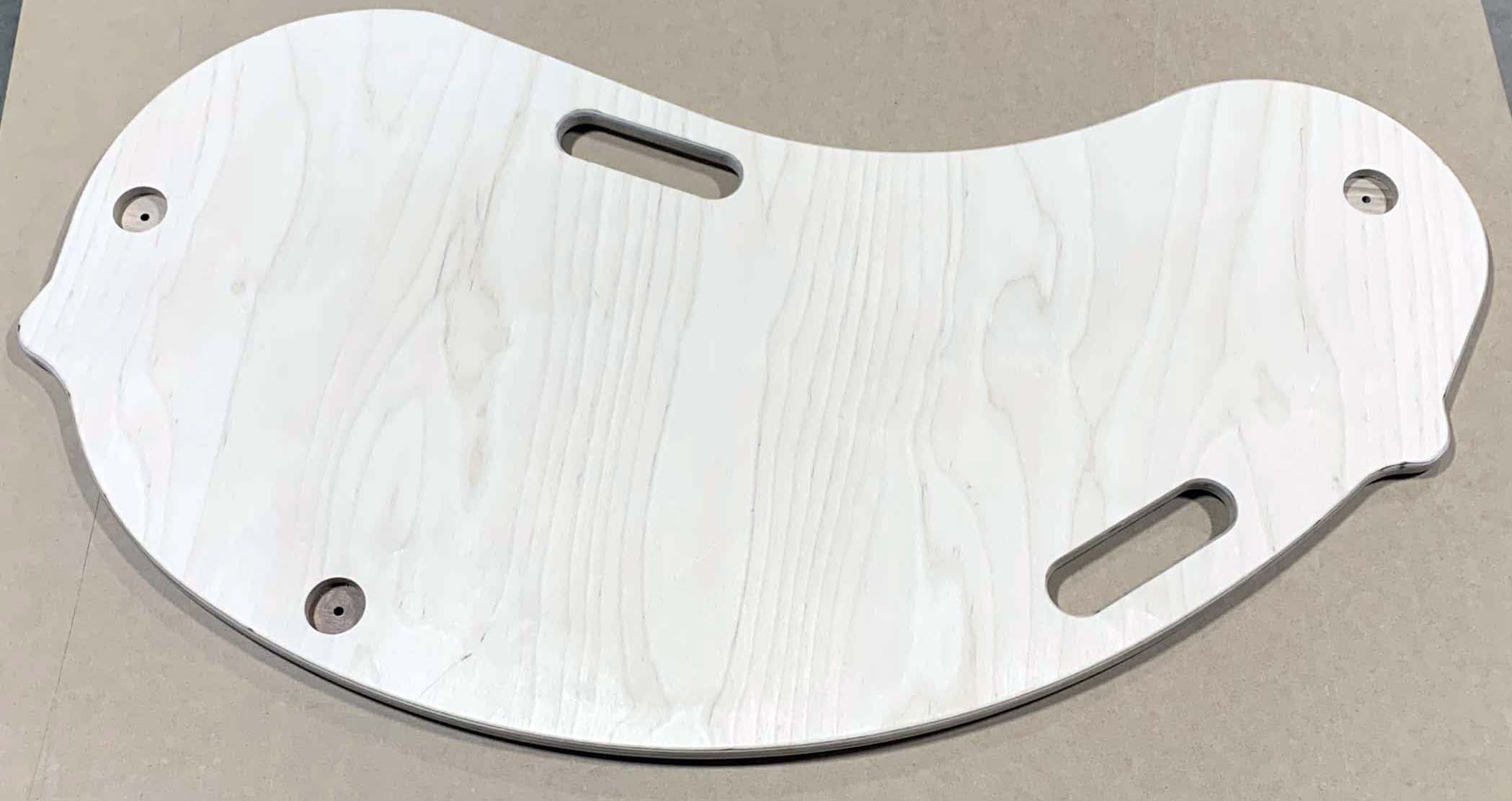

Select one side of the Bean Chair.

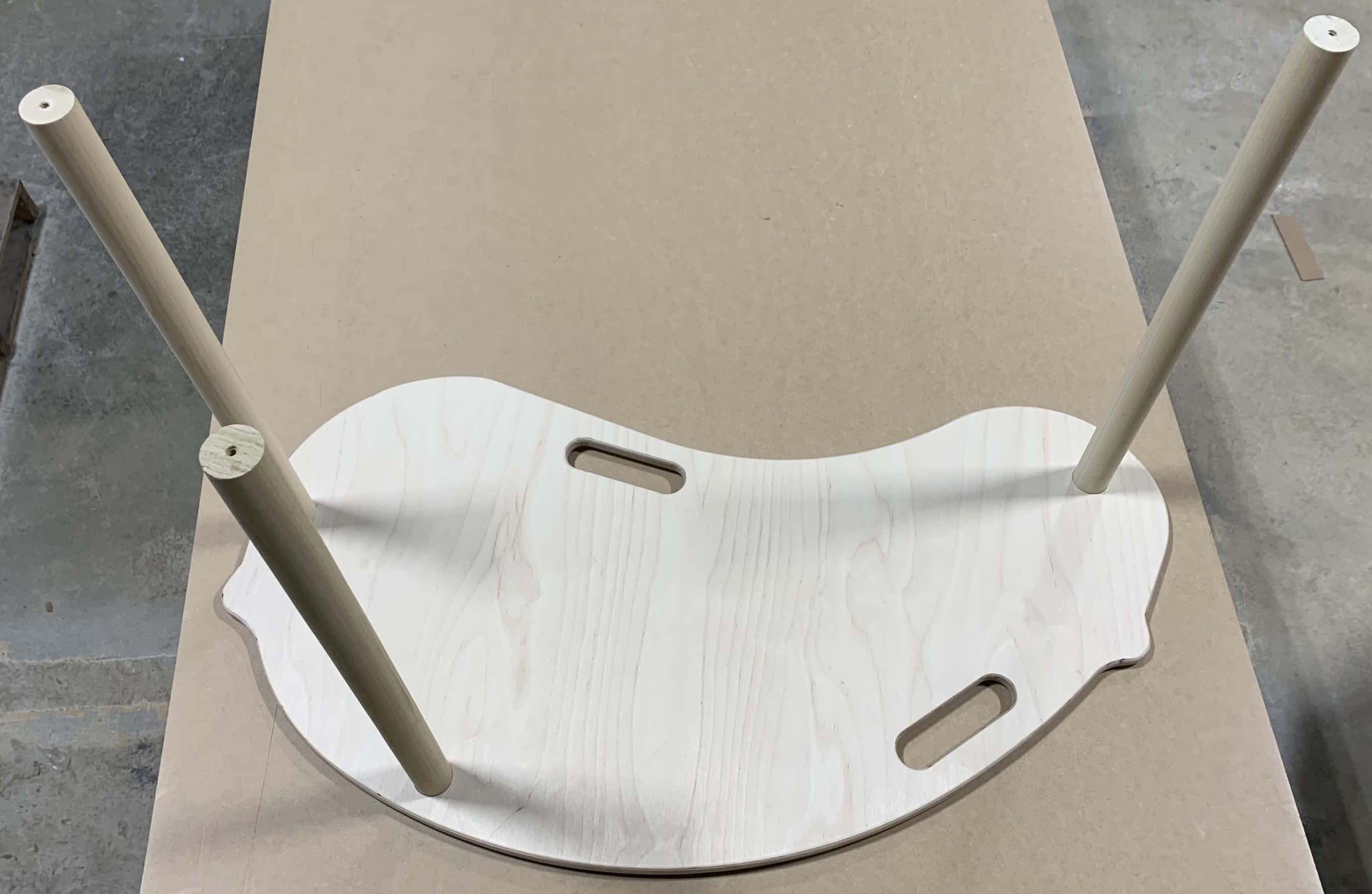

Place one end of a dowel into the pocket on the side board. From the opposite side, insert a screw into the hole and using the allen key provided, tighten the screw. Place remaining dowels into the next two pockets on the same side and secure with a screw.

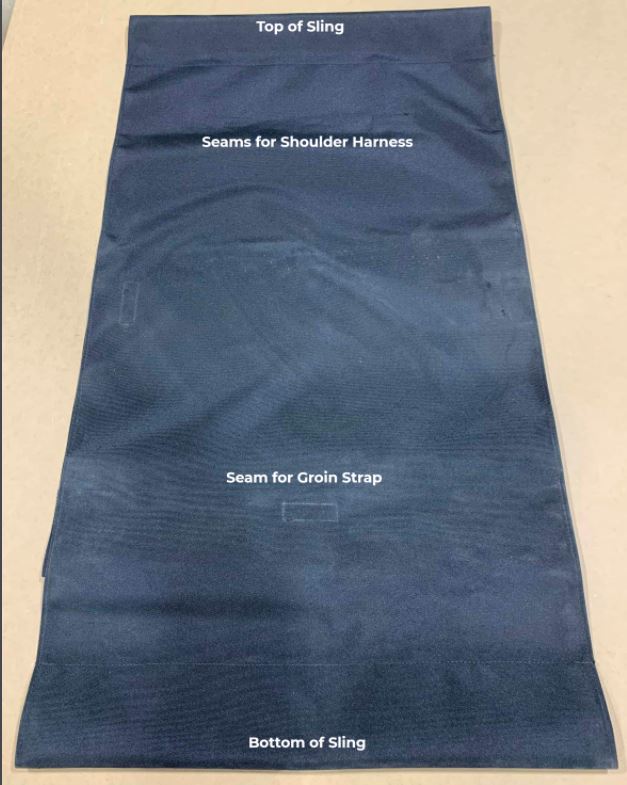

Orient the sling.  The bottom of the sling will have a seam sewn in for the groin strap.

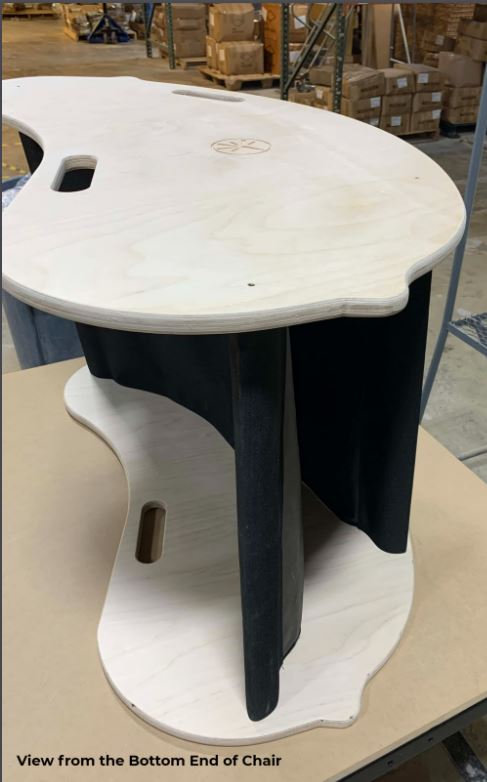

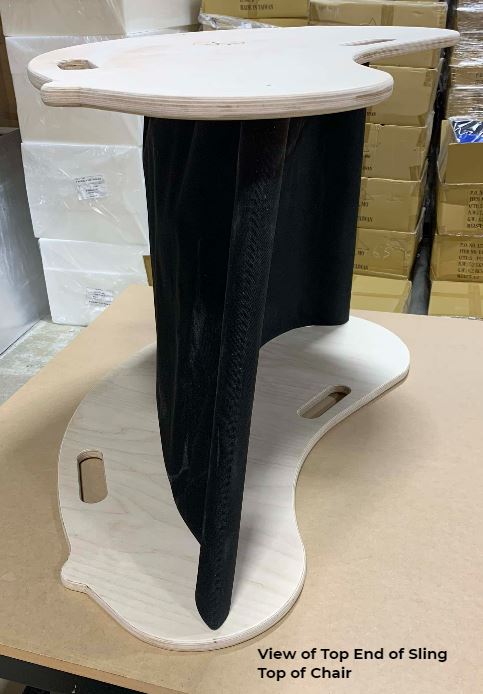

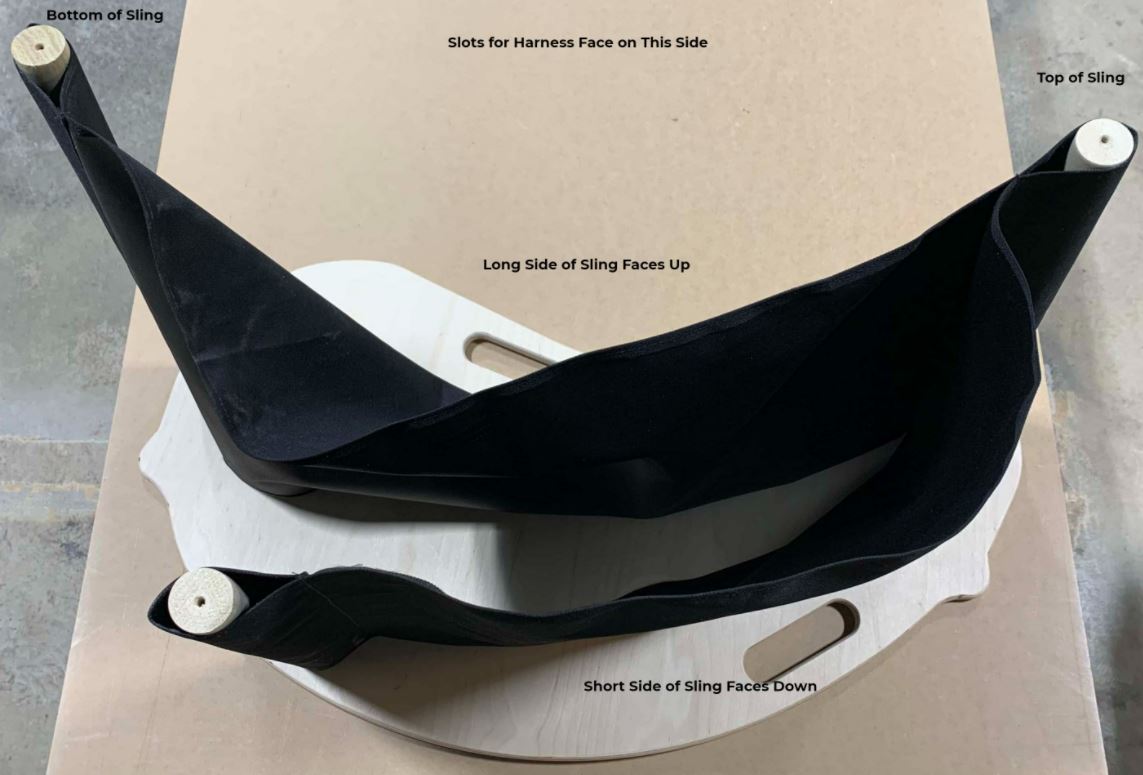

While the side board is in rocking position, slide the longer piece of fabric over the top two dowel rods. The remaining fabric will slide over the remaining dowel.

Take the other side of the bean chair, align dowels into pockets and secure with screws.



WORKING LOAD: 200 lbs

INSTRUCTIONS FOR USE:
Chair may be used on either side. One side will provide a stable base, the other will provide a rocking motion.

MAINTENANCE CHECKLIST:
All of the following wear points should be checked on a monthly basis and recorded on the maintenance checklist enclosed.
  1. Check wood for cracks or splinters. If cracked, discontinue use. For splinters, sand until smooth and refinish with clear lacquer.
  2. Check for loose screws. These may need to be tightened periodically, but do not over tighten.
  3. Check for torn cover or ripped seams. If found, discontinue use until repaired.
MATTING PRECAUTIONS:
  1. Always use appropriate matting.
STORAGE PROCEDURES:
  1. Store where not accessible by clients without proper supervision.
CLEANING INSTRUCTIONS:
  1. Check with your infectious disease department before using these procedures.
  2. Check for client allergies first.
  3. Wipe wood with a damp cloth using soap and water or disinfectant. Dry before using.
  4. Cover is machine washable - Cold water, mild detergent. Air dry - no heat.
